AP Racing by Essex Radi-CAL Competition Brake Kit (Front 9660/372mm) - C8 Corvette

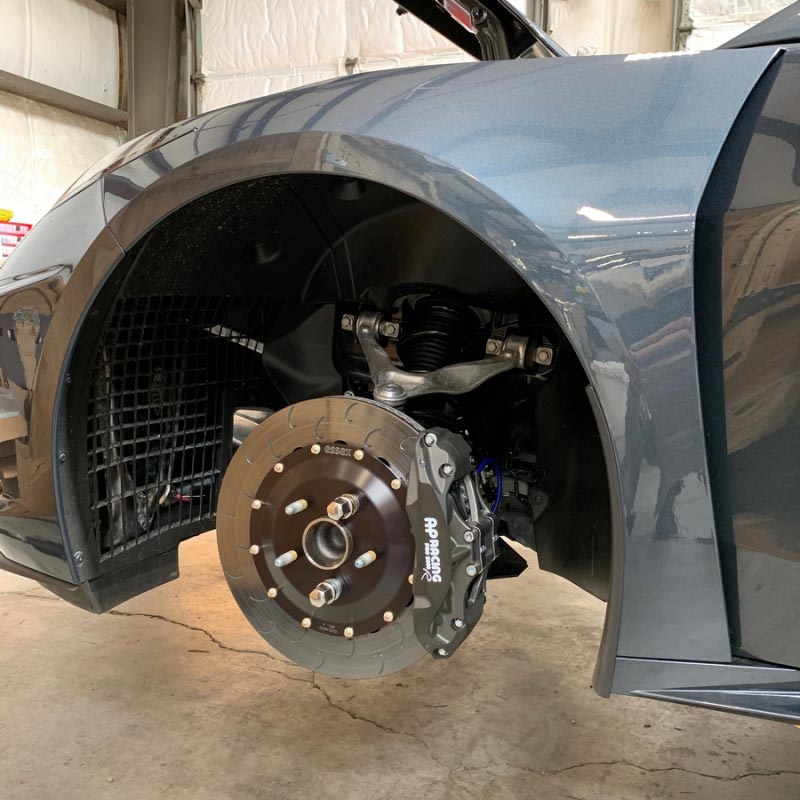

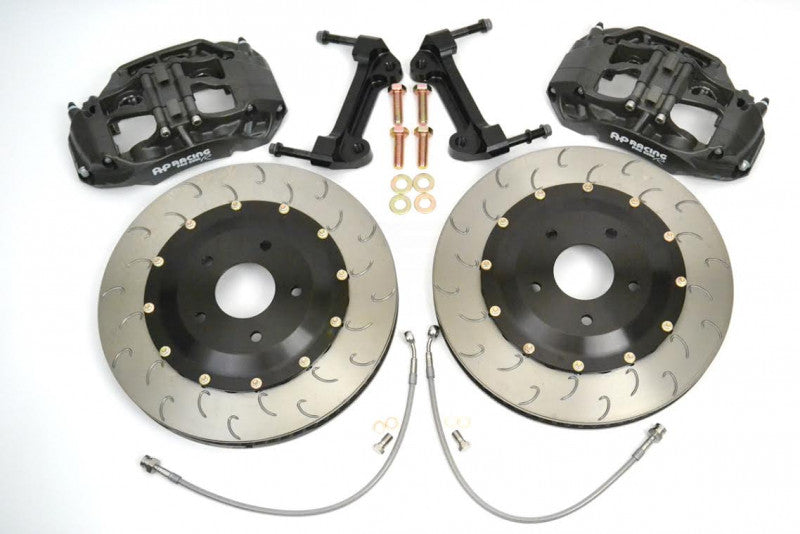

Complete FRONT AP Racing By Essex Radi-CAL Competition 372mm Brake Kit for your Chevrolet C8 Corvette

Wheel measuring template can be found here.

Increase stopping power and simplify your pad changes with the AP Racing By Essex Radi-Cal Brake kit for the C8 Corvette. Despite having two additional pistons, AP Racing calipers save 5 Lbs per caliper compared to OEM. With the racer in mind these calipers feature more airflow between the brake fluid pathways, lowering the overall systems operating temperature


Features

  • Simple pad change with two bolts
  • Save 14 unsprung lbs. from the nose over OEM Z51 Brakes
  • Durable, ventilated stainless steel pistons with anti-knockback springs
  • Increase your brake pad options
  • 372x34mm, 84 Vane AP Racing Discs
  • Components designed to resist the heat of track sessions
  • Anti-Knockback Springs

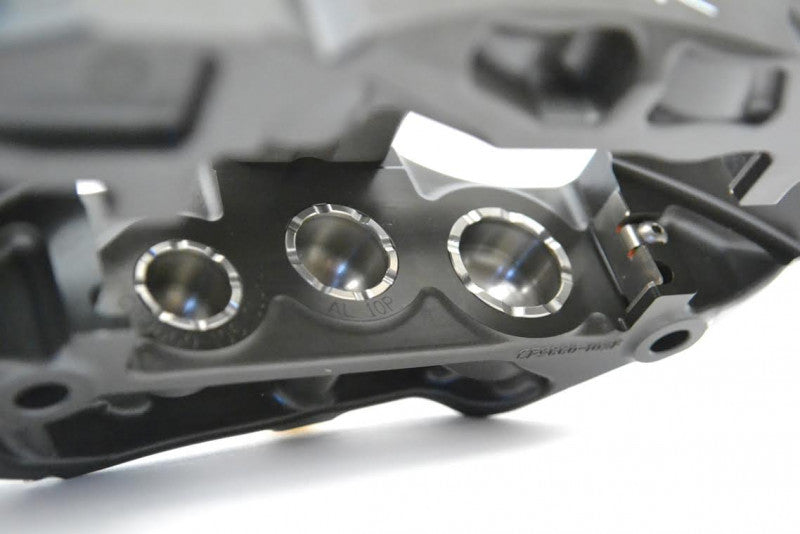

  • Ventilated, Domed Back, Stainless Steel Pistons

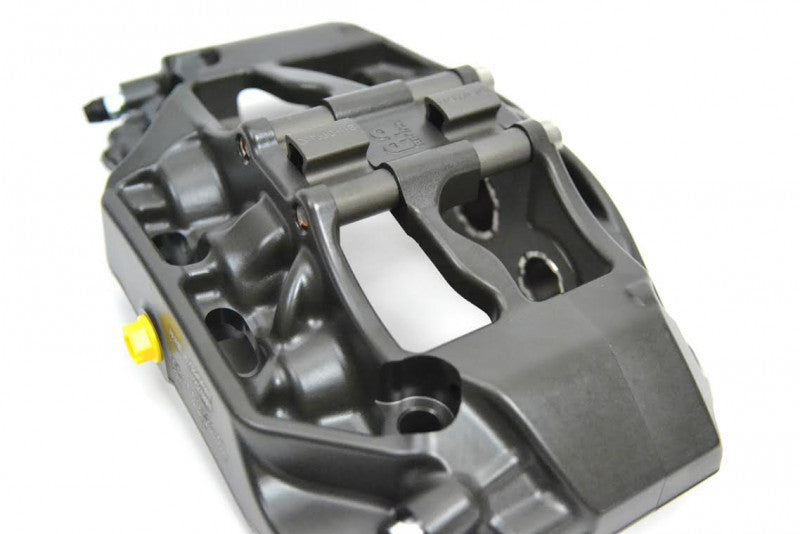

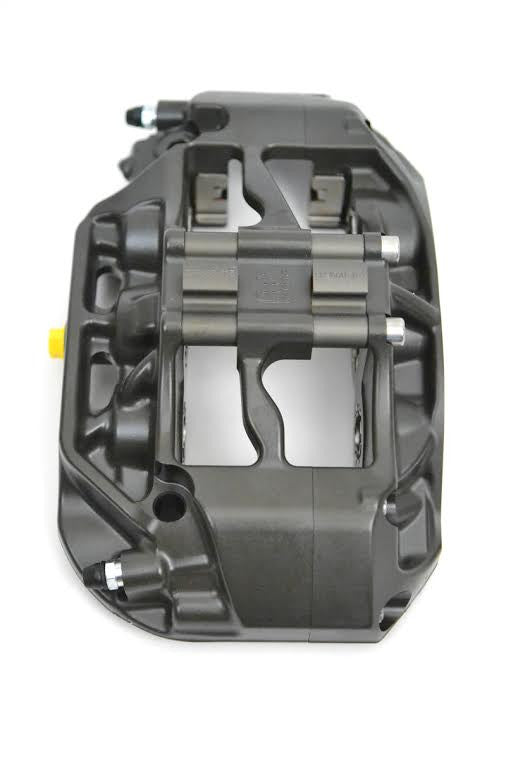

  • Two-piece, Drop-Forged Caliper Body - Anodized Finish
  • Fits behind OEM 'Trident' wheels without a wheel spacer

Warranty Information

Warranty only applies to the original purchaser. It does not transfer to new owners.
Manufacturers Warranty (If Applicable) *Terms Apply*

Installation Information

1
2
3
4
5
6
7
8
9
10
4.0 Hours
Install Time
4.0 Hours
Install Difficulty
Moderate / Difficult
Required Tools
Sockets / Bits
  • 13 mm Long
  • 15 mm Short
  • 18 mm Long
  • 22 mm Long
  • 22 mm Short
  • T-30 Torx
  • T-40 Torx
Ratchets / Extensions
  • Medium Extension
  • Ratchet
  • Short Extension
  • Torque Wrench
Wrenches
  • 13 mm
  • 18 mm
Screwdrivers
  • Small Flat Head
Power Tools
  • Large Impact
  • Power Ratchet (Optional)
  • Small Impact
Miscellaneous
  • Jack & Stands

VEHICLE FITMENT INFORMATION

Model Year
2020 - 2027
Sub-Model
C8 Stingray
Body Style
CoupeHTC (Hard Top Convertible)
