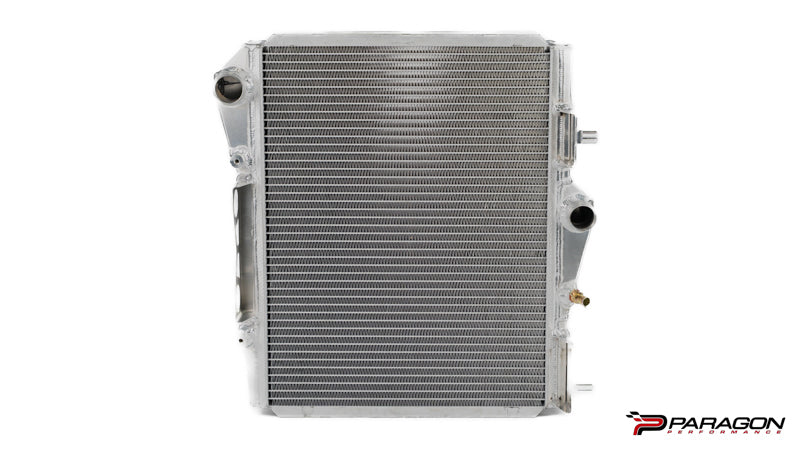

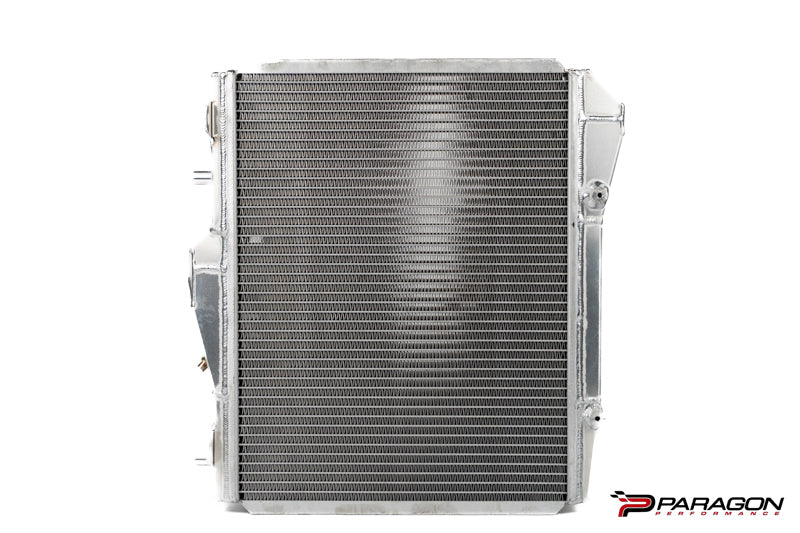

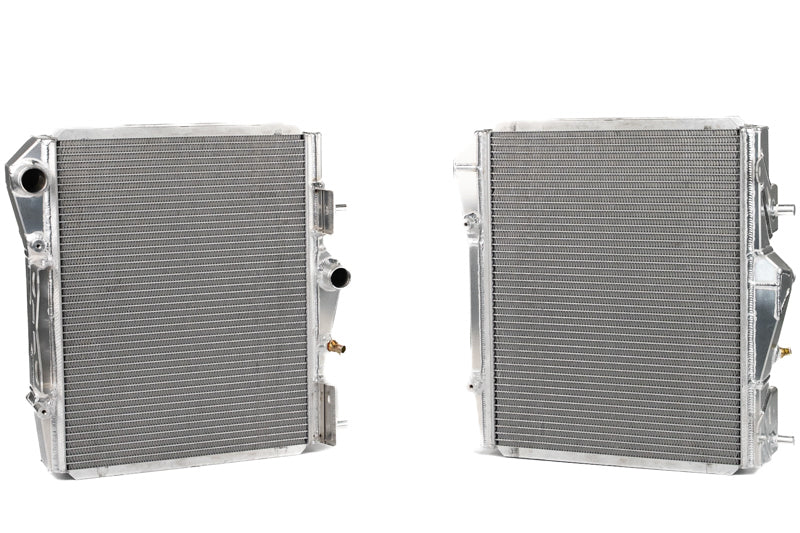

C8 Corvette Dewitts Front Radiator's Direct Fit Upgrade
C8 Corvette Dewitts Front Radiator's Direct Fit Upgrade
C8 Corvette Dewitts Front Radiator's Direct Fit Upgrade
C8 Corvette Dewitts Front Radiator's Direct Fit Upgrade

Dewitts

C8 Corvette Dewitts Front Radiator's Direct Fit Upgrade

$1,999.98
SKU: 32-1139120
Add Right Rear Radiator:

Add Right Rear Radiator
Quantity:
Low Stock - Only 2 Left

C8 Corvette Dewitts Front Radiator's Direct Fit Upgrade

Unlock the full cooling potential of your C8 Corvette.

For over two decades, DeWitts Radiator has led the industry in Corvette cooling solutions with innovation, durability, and proven race performance. The C8 is a masterpiece of engineering, but under extreme conditions, even the best demand more. That’s why DeWitts engineered a Direct Fit™ three-unit radiator package, delivering unmatched thermal management for spirited street driving, track use, and high-powered builds.

Real-World Benefits

  • +36% more cooling surface area on base models; +14% more on Z51/Z06.

  • +22% increased surface area with the auxiliary rear radiator.

  • Prevents heat soak during track sessions.

  • Supports power adders (turbo, supercharger, tuning).

  • Extends engine and transmission life by reducing thermal stress.

Technical Specs at a Glance

  • Design: Two-row, dual 1-inch core tubes

  • Flow Type: Down Flow, Single/Double Pass depending on position

  • Construction: Furnace-brazed cores, TIG-welded end tanks

  • Coolant Volume: Up to +58% capacity gain over OEM

  • OEM Integration: Works with stock hoses, sensors, and fans

DeWitts C8 Radiator—The Cooling Edge Your Corvette Deserves

Whether carving corners on the track or cruising the open road, DeWitts ensures your C8 runs cooler, stronger, and longer.

Features


  • Maximum Cooling Power – Dual 1-inch-wide core tubes with multi-louvered fins provide superior heat rejection and airflow.
  • Race-Proven Design – Fully TIG-welded aluminum end tanks with no gaskets, epoxy, or plastic parts.
  • Direct Bolt-In Fitment – OEM-style mounts, hose connections, and fan compatibility ensure a seamless upgrade.
  • Made in the USA – Built by hand from U.S.-sourced aluminum, furnace-brazed in-house.
  • Lifetime Warranty – Performance and reliability backed for life.

Warranty Information

Warranty only applies to the original purchaser. It does not transfer to new owners.
Manufacturers Warranty (If Applicable) *Terms Apply*

Installation Information

1
2
3
4
5
6
7
8
9
10
5.0 Hours
Install Time
5.0 Hours
Install Difficulty
Difficult
Required Tools
Sockets / Bits
  • 7 mm Short
  • 22 mm Long
  • T-15 Torx
Ratchets / Extensions
  • Ratchet
  • Short Extension
  • Torque Wrench
Screwdrivers
  • Small Flat Head
Power Tools
  • Large Impact
  • Power Ratchet (Optional)
  • Small Impact
Miscellaneous
  • Jack & Stands
  • Push Clip Removal Tool

VEHICLE FITMENT INFORMATION

Model Year
2020 - 2027
Sub-Model
C8 StingrayC8 Z06C8 E-RayC8 ZR1C8 ZR1XC8 Grand SportC8 Grand Sport X
Body Style
CoupeHTC (Hard Top Convertible)
