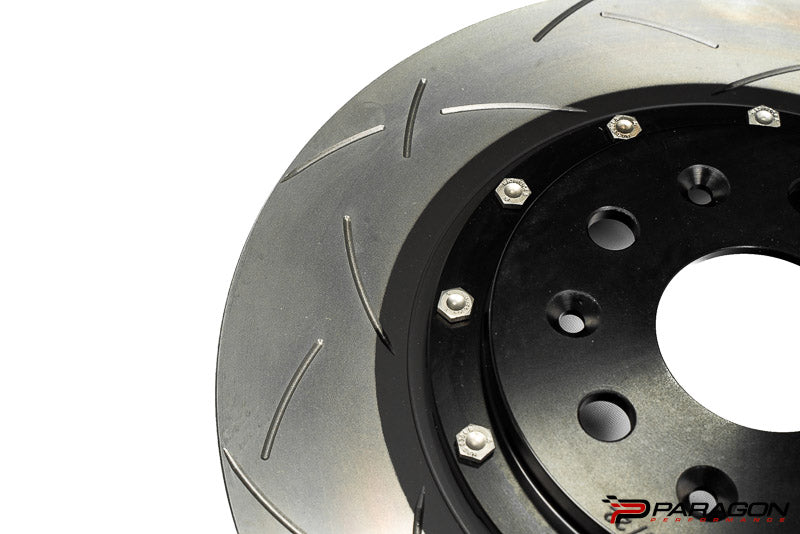

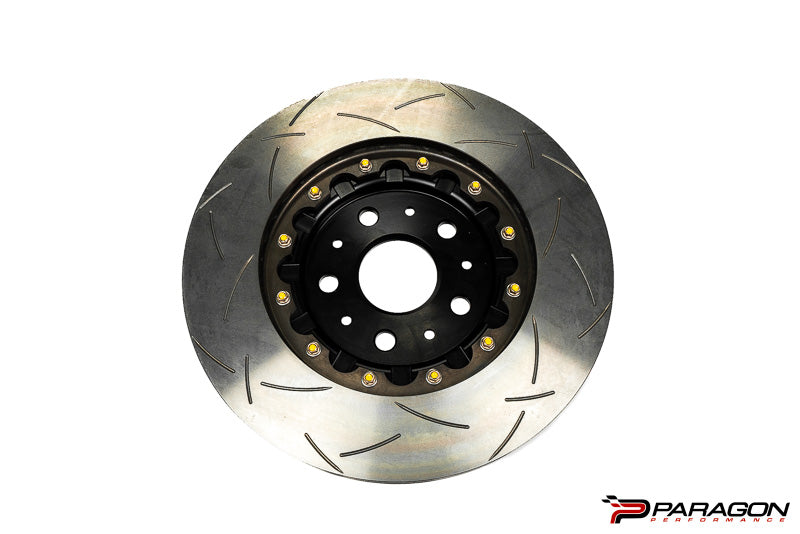

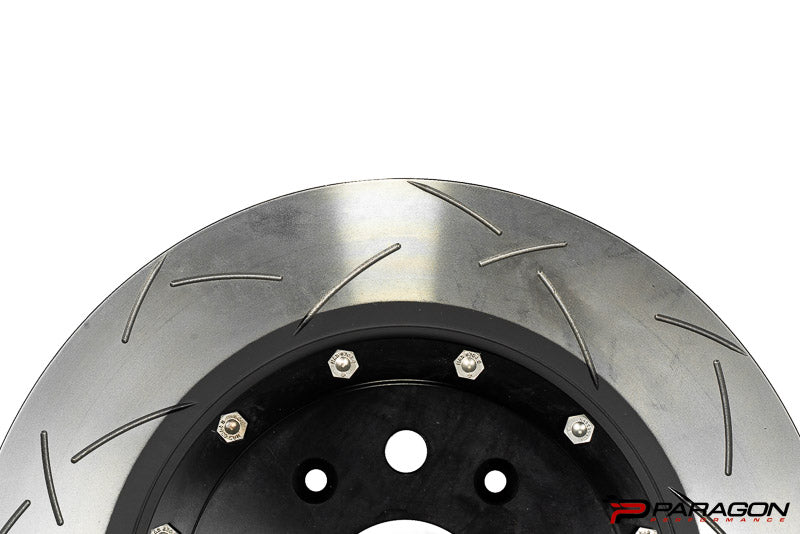

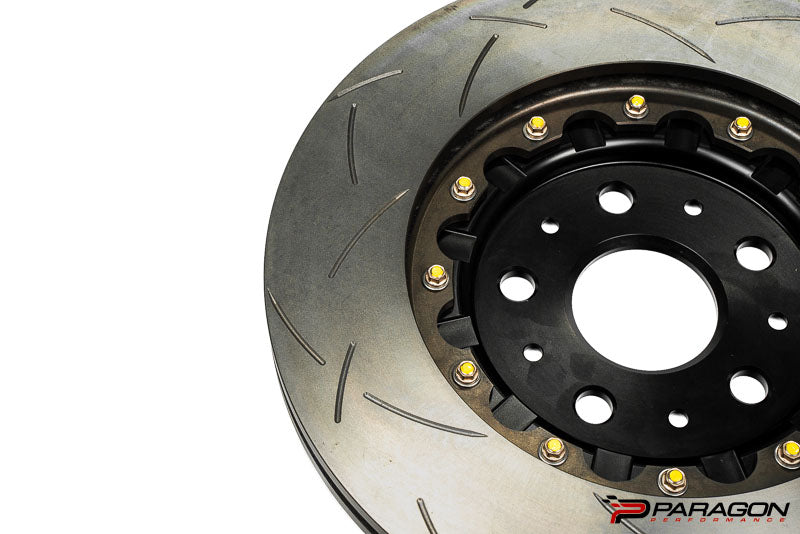

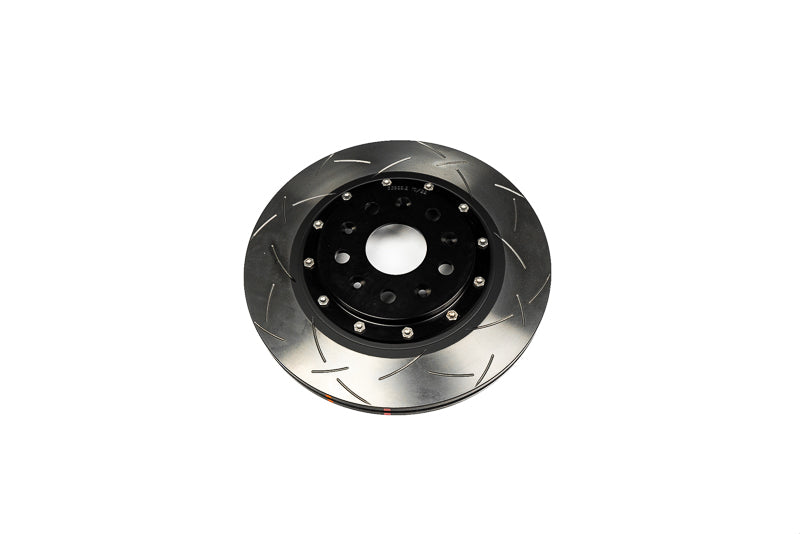

DBA 5000 Series C8 Corvette Z51 Front Slotted Rotors

$685.30 $809.90
SKU: 53928BLKS
Quantity:
Low Stock - Only 4 Left

DBA 5000 Series C8 Corvette Z51 Front Slotted Rotors

SOLD AS A SINGLE ROTOR

DBA 5000 Series T3 disc brake rotors are a direct replacement single piece rotor for the Chevrolet C8 Corvette. Designed for drivers seeking upgraded performance braking and above and beyond standard OE Levels.

Cast from high carbon alloyed iron and undergoing Thermal Stability Profiling, DBA metallurgy can handle the increased stress & head generated under intense braking applications, time and time again.

Featuring DBA's Kangaroo Paw ventilation that implements a series of 144 diamond and teardrop patterned pillars, DBA achieves up to a 30% increase in surface area and 20% improvement in cooling efficiency (as compared to a traditionally straight vane design).

*Some variants may not contain all features

Features

  • Surface Design Symmetrical slots and or chamfered drill holes facilitate the exit of friction dust and gasses, for a quieter and more responsive pedal feel.
  • Anti Rust Painted non friction areas prevent rust and enhance appearance.
  • Bi Directional Use Symmetrical slotting and or drilling for universal left/right use.
  • Thermal Stability Profiling Heat treatment cycles realign and microstructure of the iron, resulting in increased rotor stability and durability.
  • Thermal Efficiency Centre split core castings for increased heat transfer and thermal efficiency
  • CBN CBN (Cubic Boron Nitride) Machine turned finish, minimizing disc thickness variation and the potential for pad "Knock" and resulting premature wear.

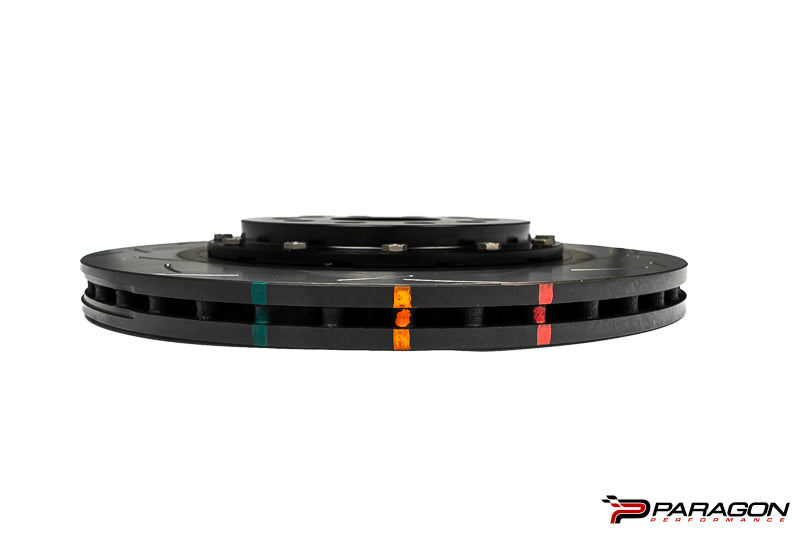

  • Thermographic Heat Paint Paint marking change color at specific temperature thresholds to assist with the monitoring of braking temperatures and rotor fatigue.
  • High Carbon Alloyed Iron Formulation allows for optimal interaction with DBA's thermal stability profiling(TSP). Increases the capacity of the rotor to handle constant and extreme heat over prolonged periods.
  • Kangaroo Paw Unique Kangaroo Paw vane design for up to 20% better heat dissipation, increasing braking effectiveness and prolonging brake life.

*Some variants may not contain all features

Warranty Information

Warranty only applies to the original purchaser. It does not transfer to new owners.
Manufacturers Warranty (If Applicable) *Terms Apply*

Installation Information

1
2
3
4
5
6
7
8
9
10
2.0 Hours
Install Time
2.0 Hours
Install Difficulty
Moderate
Required Tools
Sockets / Bits
  • 13 mm Long
  • 15 mm Short
  • 18 mm Long
  • 22 mm Long
  • 22 mm Short
  • T-30 Torx
  • T-40 Torx
Ratchets / Extensions
  • Medium Extension
  • Ratchet
  • Short Extension
  • Torque Wrench
Wrenches
  • 13 mm
  • 18 mm
Screwdrivers
  • Small Flat Head
Power Tools
  • Large Impact
  • Power Ratchet (Optional)
  • Small Impact
Miscellaneous
  • Jack & Stands

VEHICLE FITMENT INFORMATION

Model Year
2020 - 2027
Sub-Model
C8 Stingray
Body Style
CoupeHTC (Hard Top Convertible)
Brake Package
Stingray Z51 Iron Rotor
