Paragon Performance C8 Stingray Corvette Lowering Kit - Front Lift Cars
Paragon Performance C8 Stingray Corvette Lowering Kit - Front Lift Cars
Paragon Performance C8 Stingray Corvette Lowering Kit - Front Lift Cars
Paragon Performance C8 Stingray Corvette Lowering Kit - Front Lift Cars

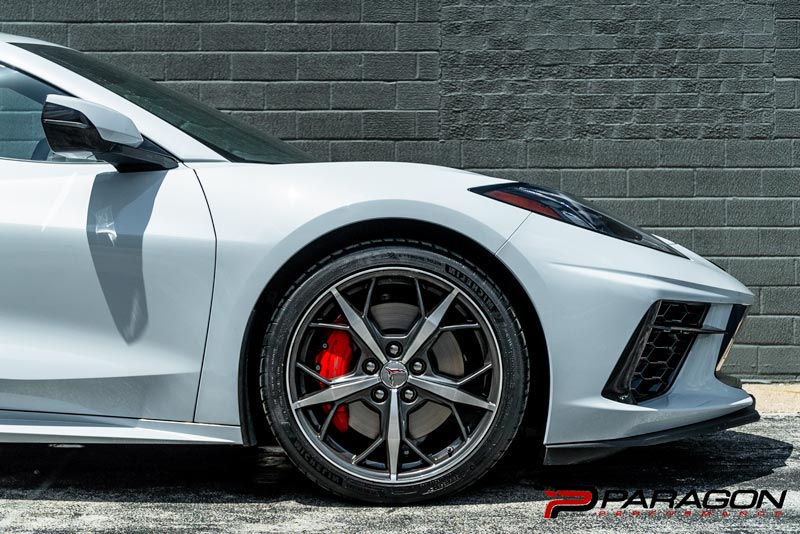

OEM

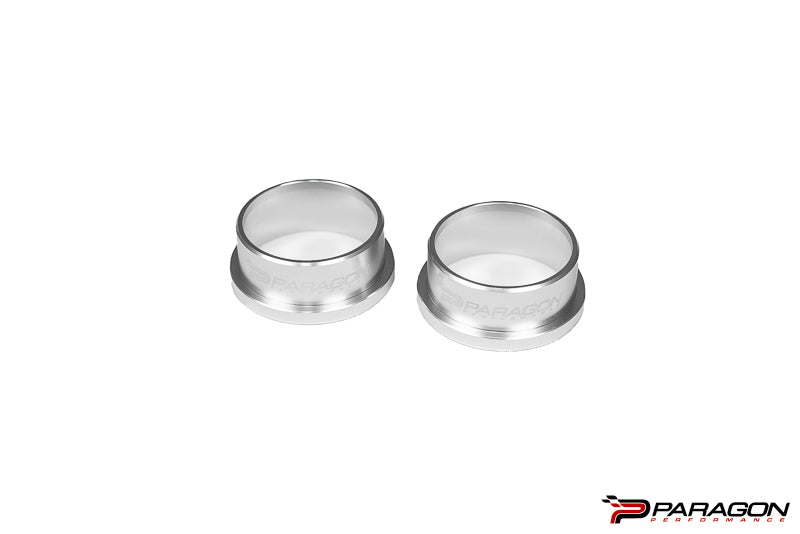

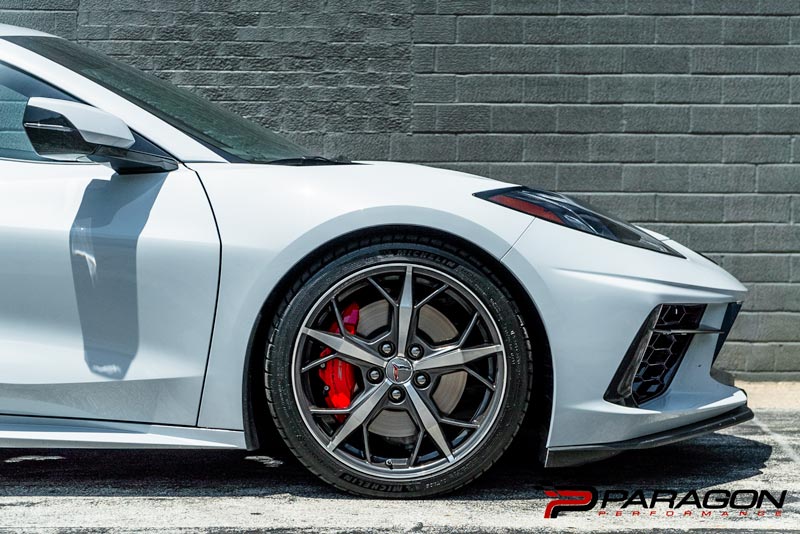

Lowering Collars
3/8" Shim
3/8" Shim

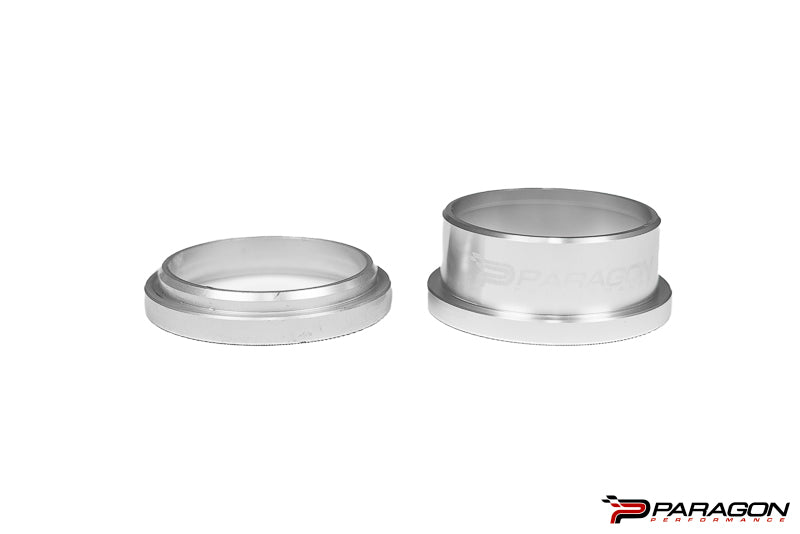

OEM Vs Lowering Collar
C8 Corvette Magnetic Ride De-Pin Tool
C8 Corvette Magnetic Ride Socket
Paragon C8 Corvette Front Lift Lowering Collar Shims

Paragon Performance

Paragon Performance C8 Stingray Corvette Lowering Kit - Front Lift Cars

$99.99 $129.99
SKU: PP-S0001-NO-NO-MAG-NO
Add Mag Ride Socket:

Add Mag Ride Socket
Add Mag Ride De-Pin Tool:

Add Mag Ride De-Pin Tool
Add 3/8" Riser Shim - Only if combining with lowering springs:

Add 3/8" Riser Shim - Only if combining with lowering springs
Quantity:
In stock

Paragon Performance C8 Stingray Corvette Lowering Kit - Front Lift Cars

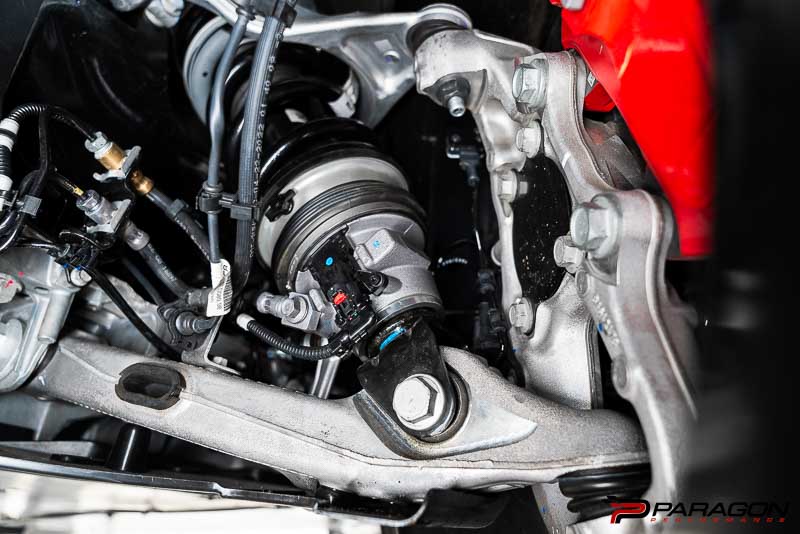

We all know the stock ride height is a better fit for GM trucks than a flagship sports car like the C8 Corvette Z06. This lowering collar is for front lift C8 Corvettes and will allow you to lower your car similar to OEM coilovers cars that do not have the front lift option. Combined with the factory rear adjustable collars you can achieve similar factory lowering capabilities as other Z06 C8 Corvettes. Includes aluminum spacer for brake line bracket to reduce tension on brake line.

This item was designed in house in CAD software, then 3D printed in a couple versions to verify fitment and lowering capabilities. After completed testing it was then produced accurately via CNC machine work.

Mag Ride Socket

This socket is more than likely needed for your install. Some shops may have this socket already but most people do not as it's a specialty tool. Be sure to watch the install video below to see if you need this or not.

De-Pin Tool

This tool makes de-pinning the connector on mag ride cars much easier. You can still do it without this tool, but be prepared to be frustrated for about 15-20 mins while you fiddle with other small flat heads to try and de-pin the connector.

Shims

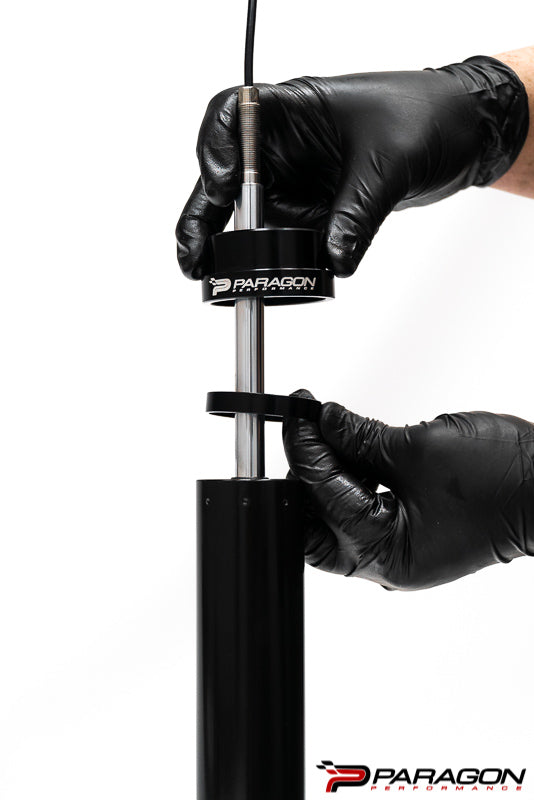

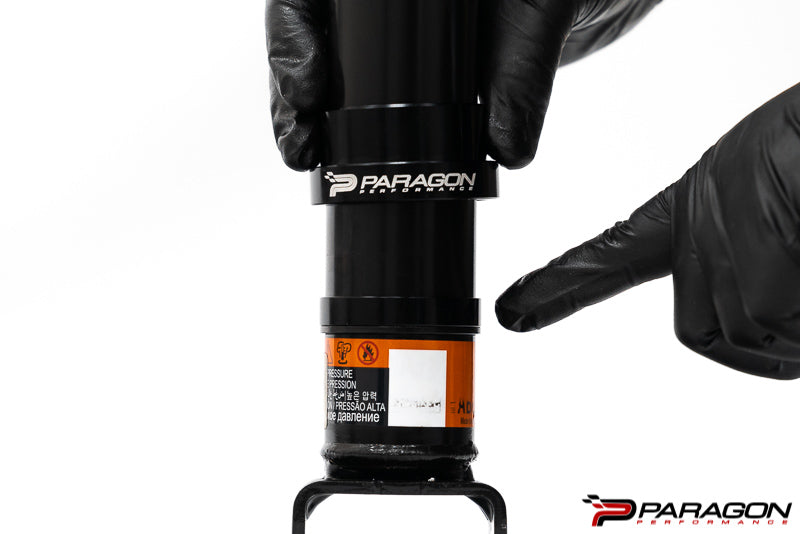

We have added the option for a 3/8" riser shim. This will allow people who do not want a full .75" drop to achieve a 3/8" drop. This can be used to fine tune your drop if you have aftermarket springs and want to raise things up a bit or if you just don't want to lower your car the full 3/4".

Get your spanner wrenches to lower the rear of the car here!

Features

  • Made from 6061 Aluminum
  • Lowers front end about an inch ( .75 inch matches factory adjustment )
  • Retains Front Lift Function, your car will still raise up
  • Designed and Made in the USA
  • Anodized black with laser logo for a completed look
  • Lifetime Warranty
  • Mag Ride socket and de-pin tool is optional for the DIY guys
  • Bump stops do not need trimmed. GM planned for Z51 cars to be lowered .75 inches ( factory max allowed ). The bump stop on the front lift cars are same as all Z51's. No trimming is needed

Warranty Information

Warranty only applies to the original purchaser. It does not transfer to new owners.
Paragon Lifetime Warranty *Terms Apply*

Installation Information

1
2
3
4
5
6
7
8
9
10
3.0 Hours
Install Time
3.0 Hours
Install Difficulty
Easy / Moderate
Required Tools
Sockets / Bits
  • 7 mm Short
  • 10 mm Long
  • 13 mm Long
  • 15 mm Short
  • 22 mm Long
  • MagRide Socket
  • T-15 Torx
Ratchets / Extensions
  • Long Extension
  • Ratchet
  • Short Extension
  • Torque Wrench
Power Tools
  • Large Impact
  • Power Ratchet (Optional)
  • Small Impact
Miscellaneous
  • De-Pin Tool
  • Jack & Stands
  • Push Clip Removal Tool
  • Spring Compressors

VEHICLE FITMENT INFORMATION

Model Year
2020 - 2027
Sub-Model
C8 Stingray
Body Style
CoupeHTC (Hard Top Convertible)
Suspension Package
Stingray BaseStingray Z51
Front Lift Equipped?
Yes
MagRide Equipped?
YesNo
